Description

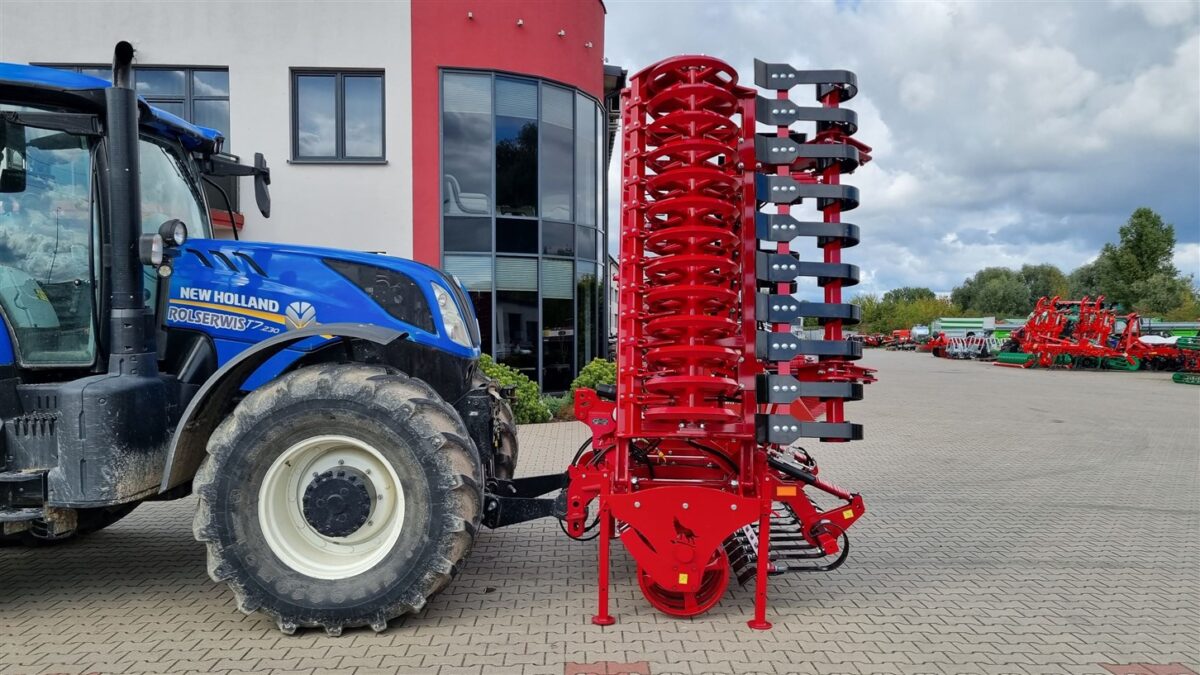

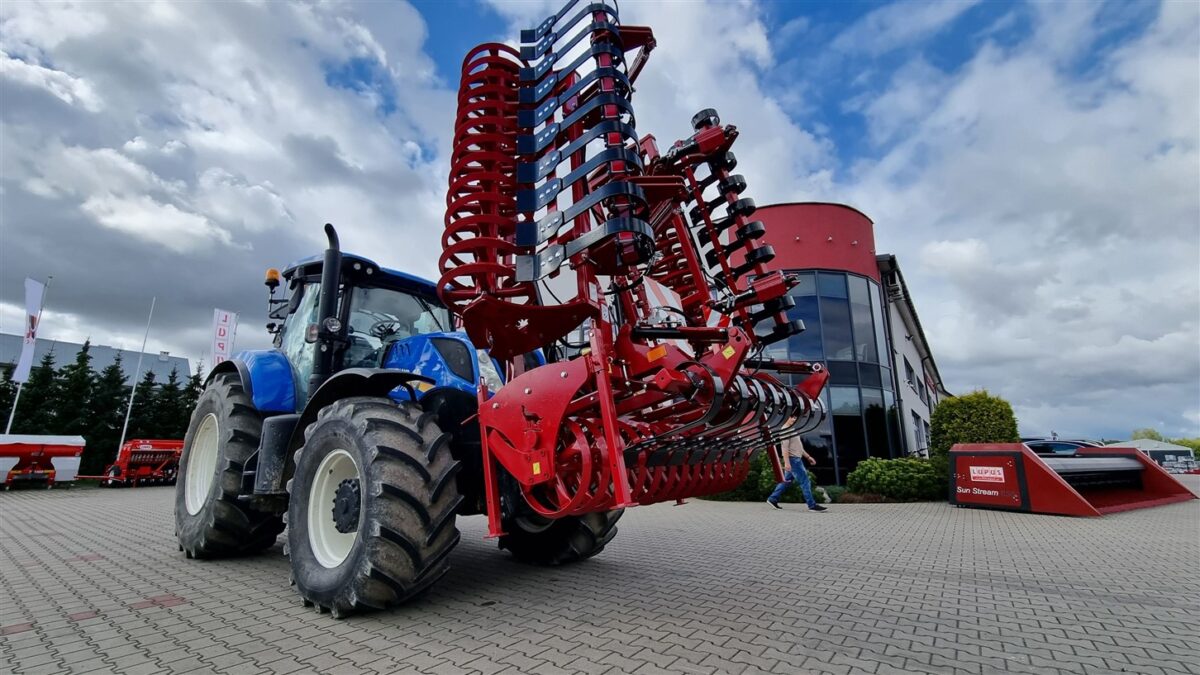

Hydraulic Folding Front Roller for Tractor Front Linkage.

Front linkage rollers are recommended for soil consolidation and leveling before or during seeding. The use of cultivation rollers also promotes soil moisture retention and improves its structure.

We produce hydraulic folding front rollers in widths of 4.0 m / 5.0 m / 6.0 m. We are able to adapt the machine width to your requirements.

We produce front rollers on Crosskill rings, Cambridge rings, V-ring rollers, and knife rollers.

Basic specification: Hydraulic folding and unfolding, latch locks, LED lighting, universal frame (possibility of changing rings).

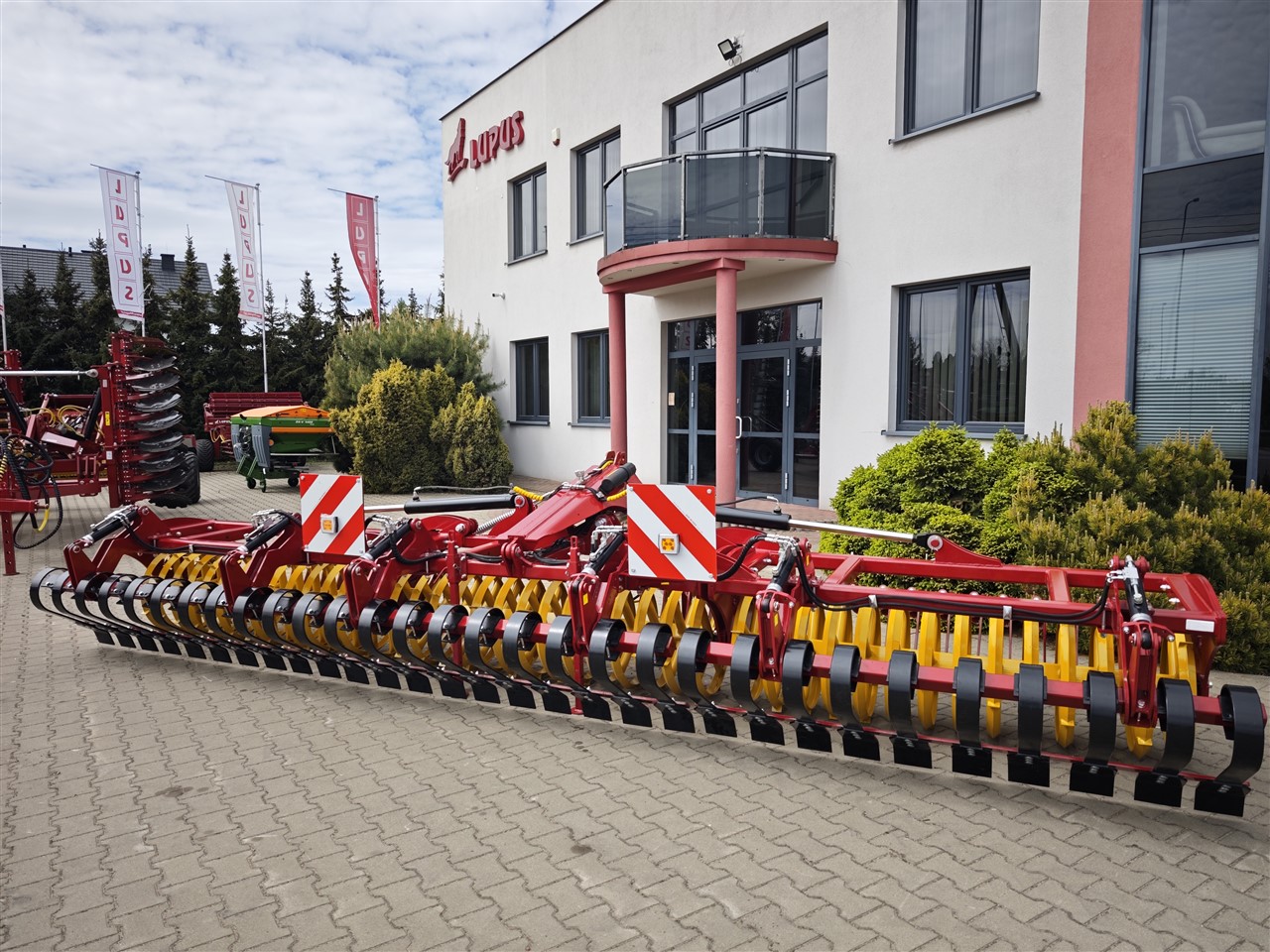

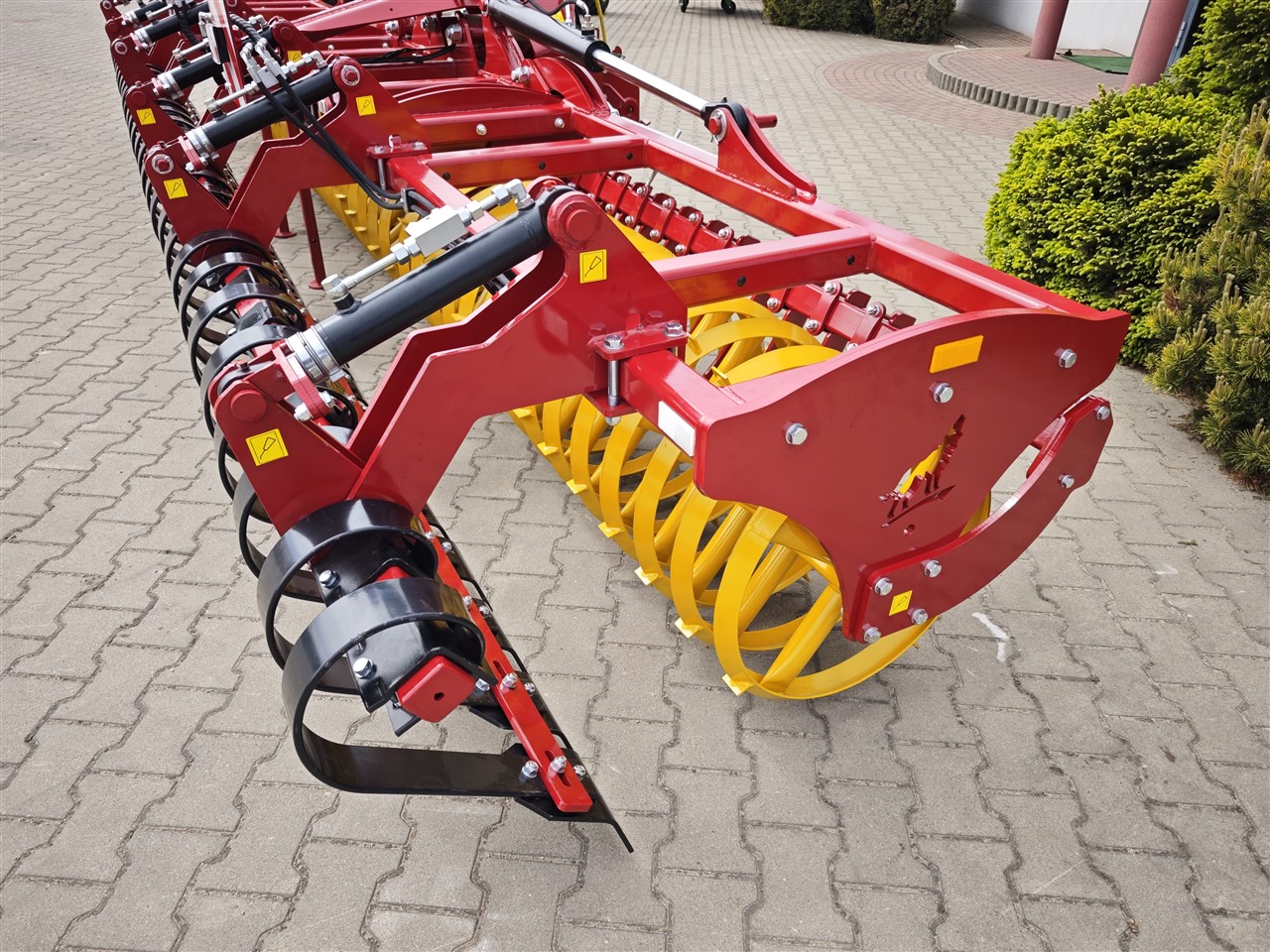

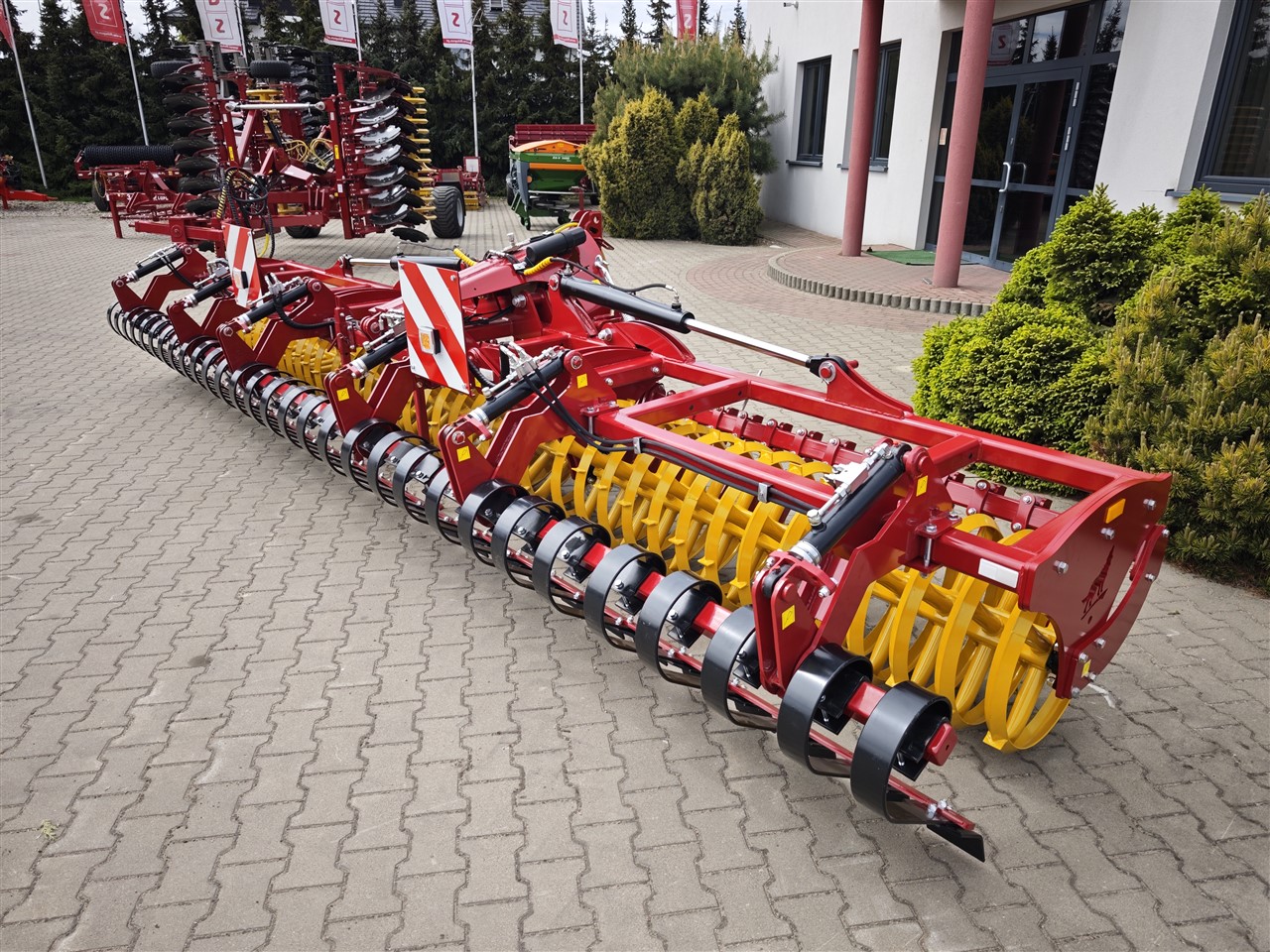

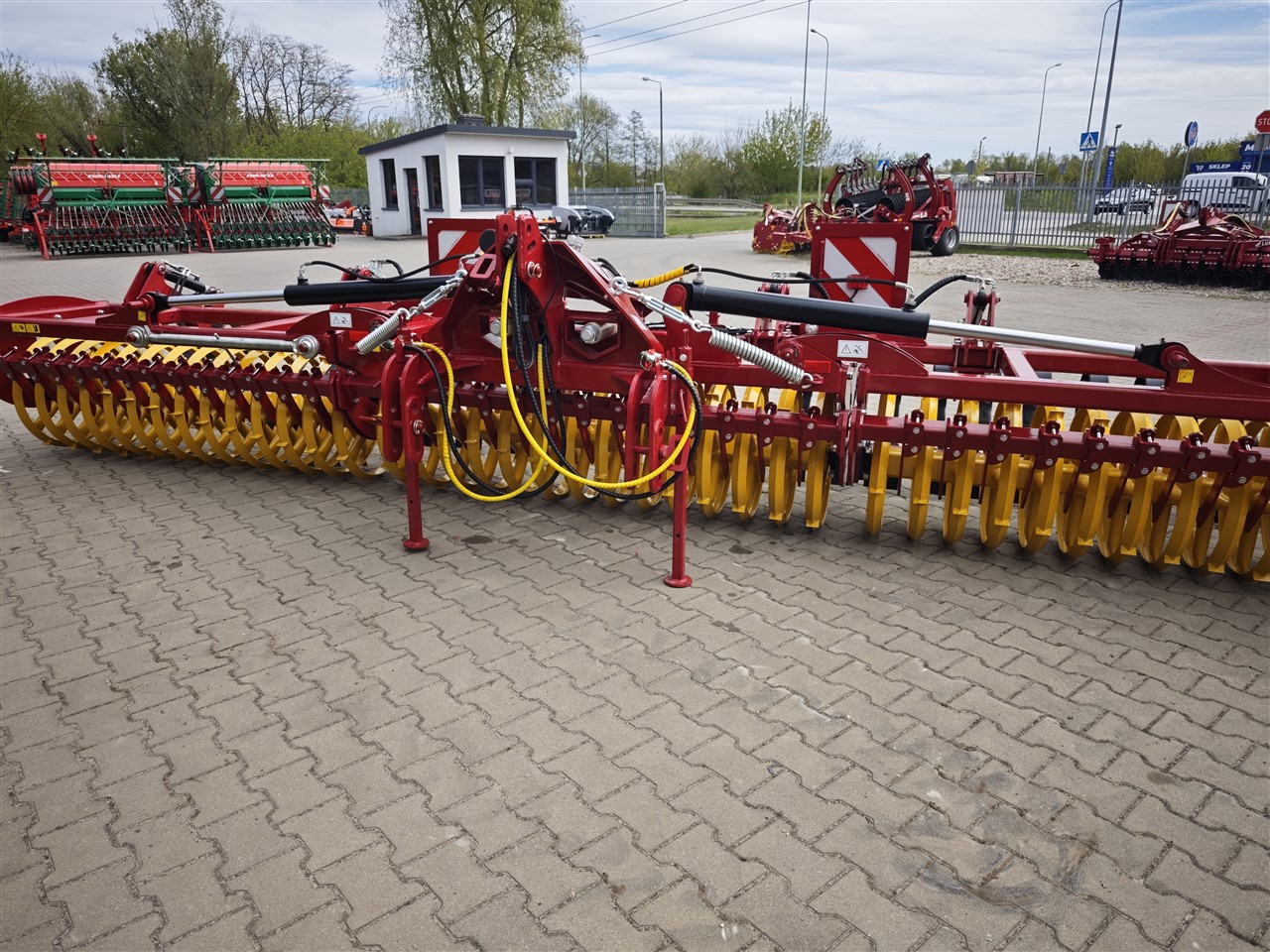

Photo gallery: 6.0m front roller on V-ring with drag harrow.

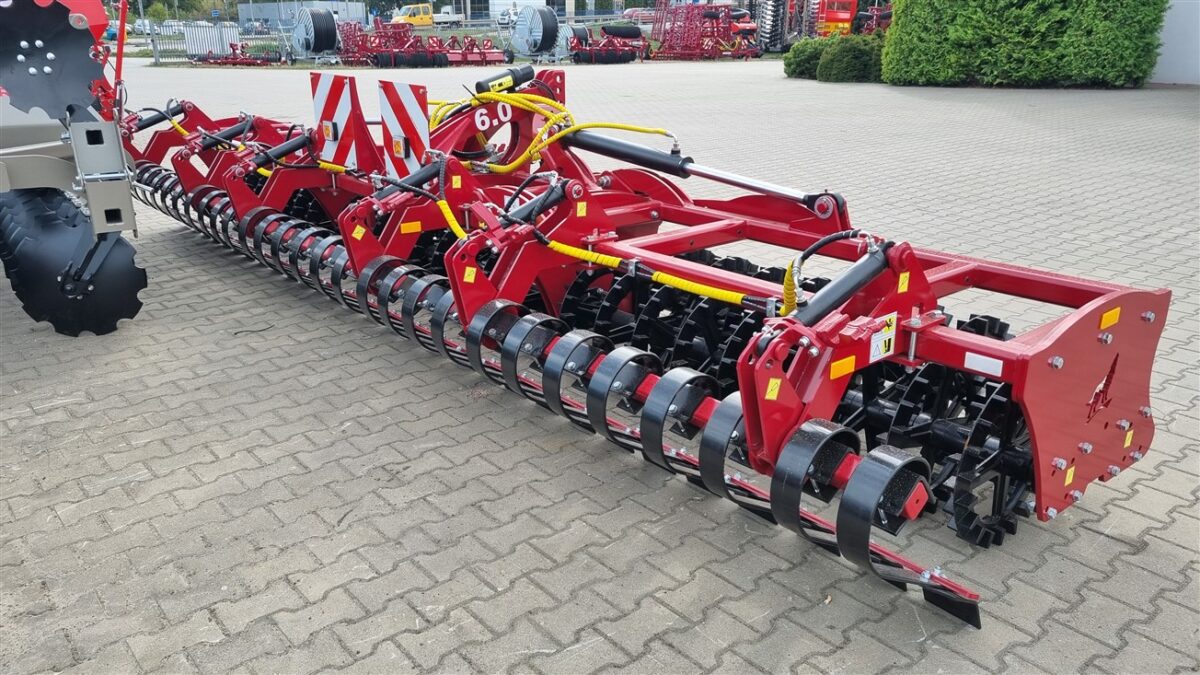

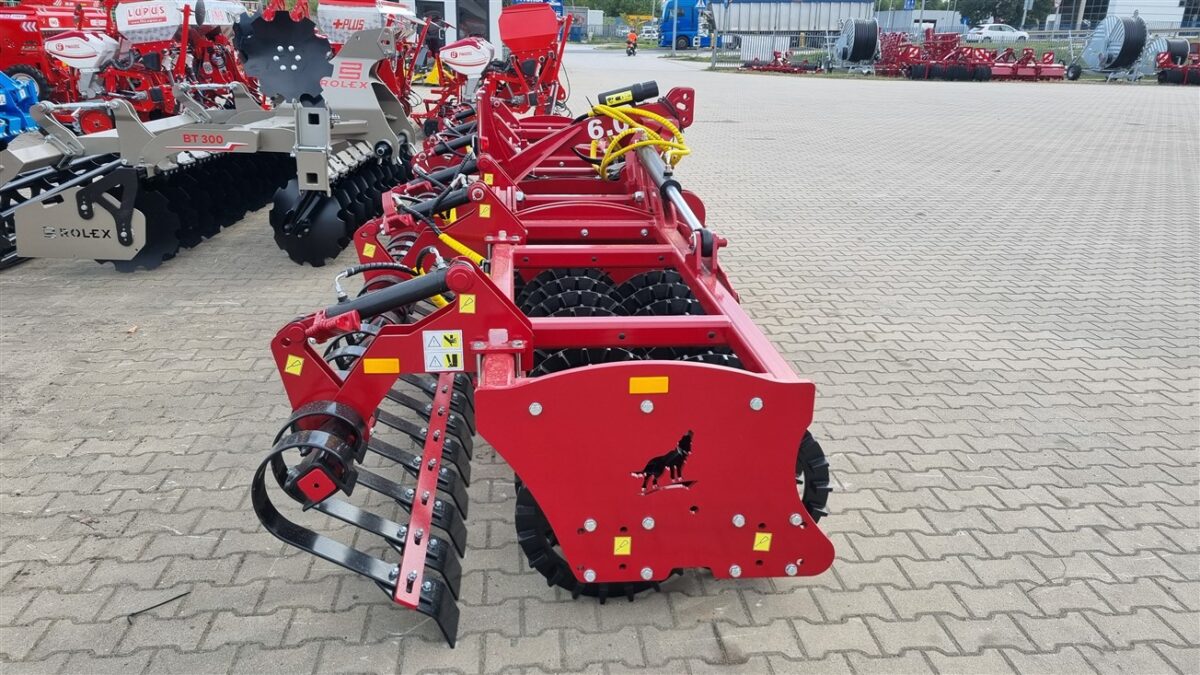

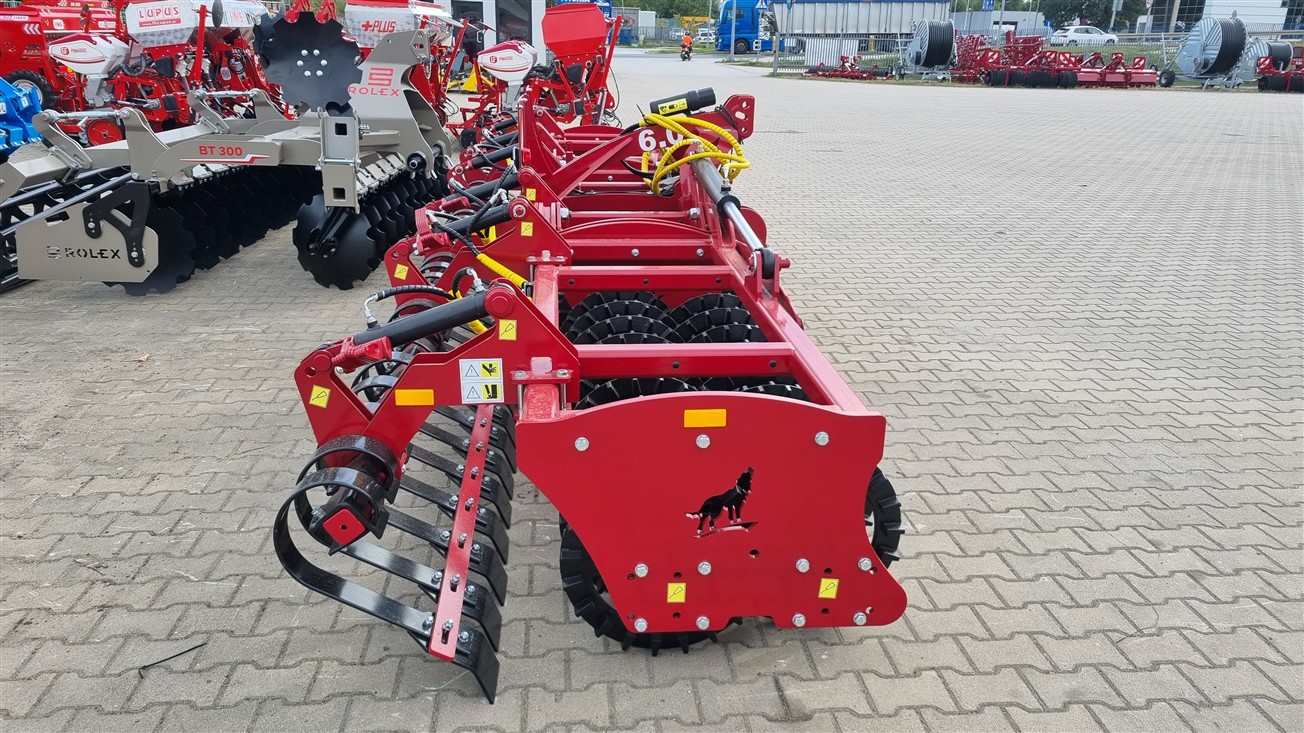

Hydraulic folding front Crosskill roller with a width of 6.0 m with hydraulically folding drag harrow.

The machine consists of two rows of Crosskill rings with a diameter of 510 mm. Cast iron Crosskill rings with a diameter of 510 mm are arranged alternately in a tandem system to prevent clogging. We do not need a scraper bar in this case. This type of roller is most often used for crushing soil clods. The soil after cultivation with such a roller is very well consolidated and perfectly prepared for planting.

Knife roller 4.0 – 6.0 m

The LUPUS front linkage knife roller for cover crops is built of two cutting rotors with a diameter of Ø 380 mm. Each of the rotors consists of six segments on which cutting knives made of 8 mm Hardox are mounted. Standard equipment includes sheet metal roller guards.

We stand out from the competition by:

– use of first-grade thick-walled materials made of reinforced steel, confirmed by certificate 3.1 EN 10204 signed by FPC (Factory Production Control)
– numerous strength reports of materials used available from the steel mill
– total weight of rollers greater than the competition
– smooth adaptation of the roller to the terrain through the use of “floating” elements
– problem-free change of roller position from working to transport
– perfectly baked and hardened paint coating which guarantees long-term use without corrosion
– standard parts such as bolts, washers, nuts are galvanized and mostly come in class 8.8.

Technical data

TECHNICAL DATA Front rollers.

	Width (m)	Weight (kg)	Power (HP)
Knife roller	4.0	1500	from 160
	5.0	1800	from 180
	6.0	2150	from 200
Crosskill tandem roller with drag harrow	4.0	2380	from 160
	5.0	2880	from 180
	6.0	3500	from 200
V-ring roller with drag harrow	4.0	1220	from 160
	5.0	1510	from 180
	6.0	1700	from 200
Cambridge 530 mm roller with drag harrow	4.0	2380	from 160
	5.0	2880	from 180
	6.0	3500	from 200
