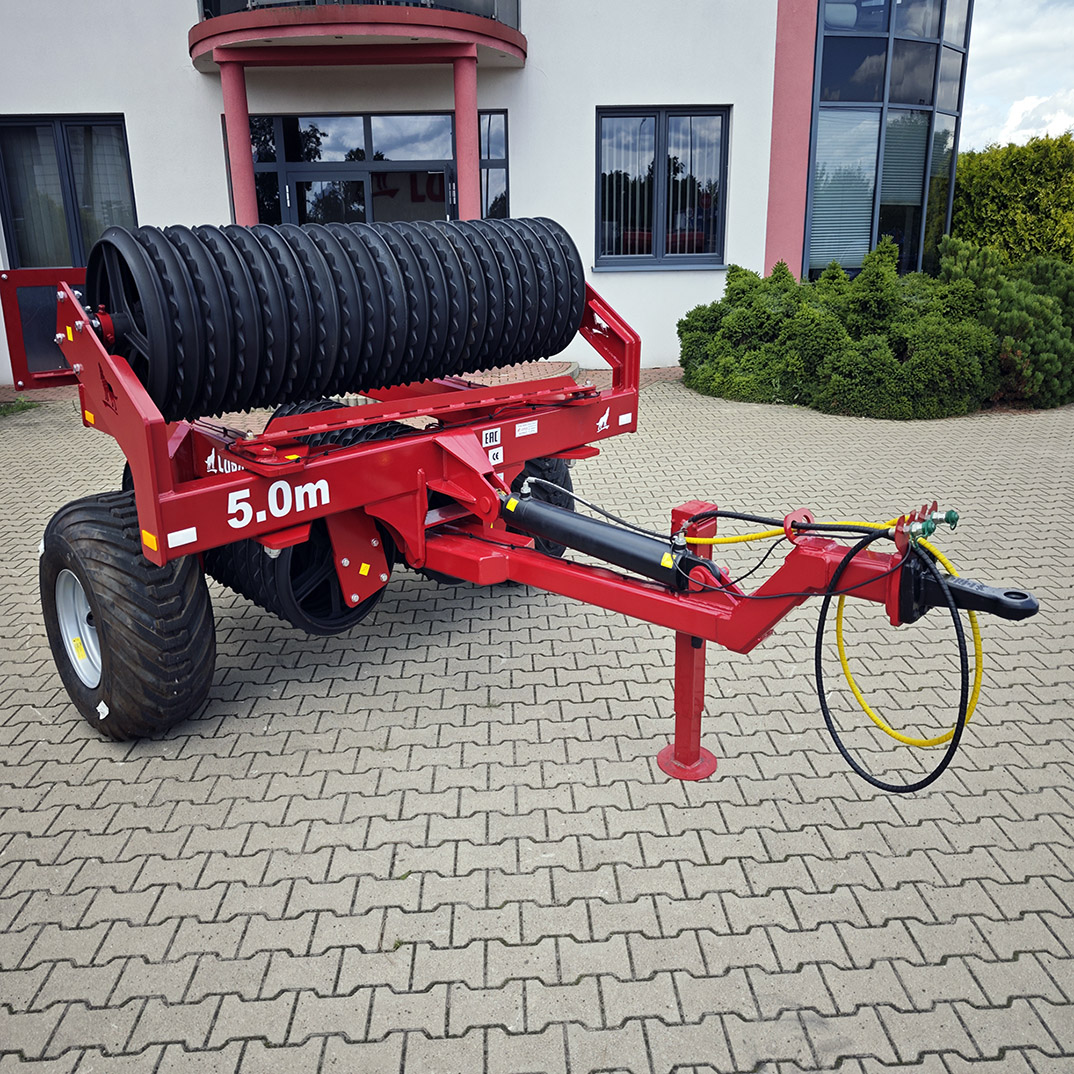

LUPUS rollers 4.5 – 6.2 m
The Lupus rollers, available in 4.5m / 5.0m and 6.2m widths, are three-piece drawn rollers on cast iron with diameters of Ø 500, 530 or 600 mm. It is the simplest trailed roller Lupus is easy to operate, using only one hydraulic cylinder. To unfold it, simply unbolt the pin from the bar that locks the frame segments. Once unlocked, the side sections automatically unfold when the machine is reversed. Then, using the hydraulic cylinder, all sections of the roller are lowered.
What are rollers used for?
Rollers are designed to compact the topsoil immediately after ploughing, before sowing or after sowing, creating a tubular soil structure. Our rollers can also be used for post-harvest cultivation, which speeds up the rotting of straw residues and seed germination. They also work well on grassland,
Thanks to their special profile, the roller rings penetrate the soil and cause surface compaction. The considerable weight per metre of width results in sufficient hardening and levelling of the arable layer. As a result, deep ruts do not form during subsequent passes and, due to the improved capillarity of the soil, a significantly higher emergence capacity is achieved.
Specyfikacja:
Standard equipment:
– support feet
– transport protection
– three sections of the Cambridge roller
– Cambridge rings Ø 500
– frame with upper hitch on the tractor
– wheels 11,5/80-15,3
– folding by one cylinder
Opcje:
– rings Cambridge Ø 530 or 600 – lighting
– wheels 400/60-15.5
Cambridge rings with a diameter of Ø 500, 530 or 600 mm

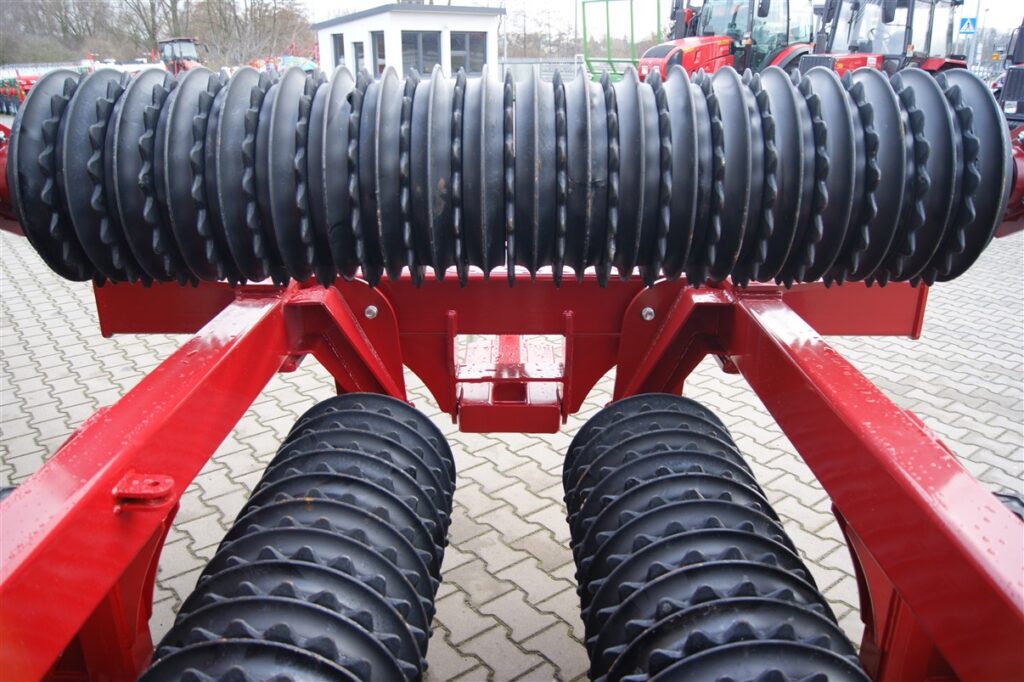

Cambridge rollers consist of alternating castings of smooth rings and flat toothed discs, with the toothed discs being slightly larger in diameter. The toothed discs are mounted on the hub projections of the smooth rings and can rotate independently of them. This difference in rotational speed between the rings and the discs allows the roller to self-clean any soil that could stick to it. As a result, this design ensures continuous, efficient operation of the roller without the need for frequent cleaning. The Cambridge rings effectively compact and crush the soil, improving soil structure.
Why choose Lupus rollers?
Lupus seed rollers stand out from the competition thanks to the use of thick-walled, first-grade materials made from reinforced steel and confirmed by the 3.1 EN 10204 certificate signed by CPR. Numerous strength reports available from the steel mill guarantee the durability and reliability of the rollers. Lupus rollers are heavier than competitive products, which ensures better soil compaction and leveling.
Unique features of Lupus rollers
‘Floating’ elements: The rollers are equipped with ‘floating’ elements that allow them to adapt smoothly to the unevenness of the terrain, ensuring even compaction of the soil.
Easy transport: Effortlessly changing the position of the roller from working to transport position makes it easy to handle and transport between fields, increasing work efficiency and saving time.
Durable paint coating: The perfectly heated and hardened paint finish guarantees corrosion-free longevity, even in harsh weather conditions.
Galvanized standard parts: Screws, washers and nuts are galvanized and come in class 8.8, which ensures durability and resistance to corrosion.
Lupus seed rollers are advanced agricultural implements that provide effective soil compaction and levelling thanks to high-quality materials, robust construction and innovative technical solutions. These features translate into better conditions for plant growth and higher yields. An investment in Lupus rollers is a guarantee of durability, reliability and efficiency in field work.
Check out our range of 3-cylinder expandable rollers additionally equipped with a front drag -> LUPUS roller with hydraulically adjustable with a front drag
Watch more VIDEOS here.
TECHNICAL DATA:
| Symbol | Width (m) | Diameter of rings | Weight (kg) | Power requirement |
| WU45 | 4,5 | 500 mm | 2100 | from 80 HP |
| 530 mm | 2400 | |||
| 600 mm | 2650 | |||
| WU50 | 5,0 | 500 mm | 2300 | from 85 HP |
| 530 mm | 2600 | |||
| 600 mm | 2900 | |||
| WU62 | 6,2 | 500 mm | 2650 | from 90 HP |
| 530 mm | 2950 | |||
| 600 mm | 3400 |

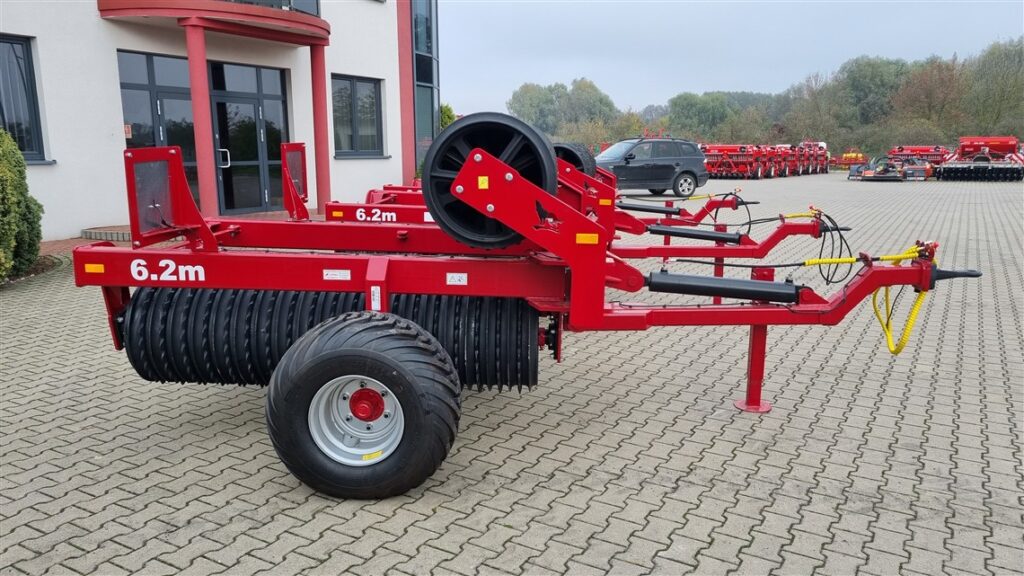

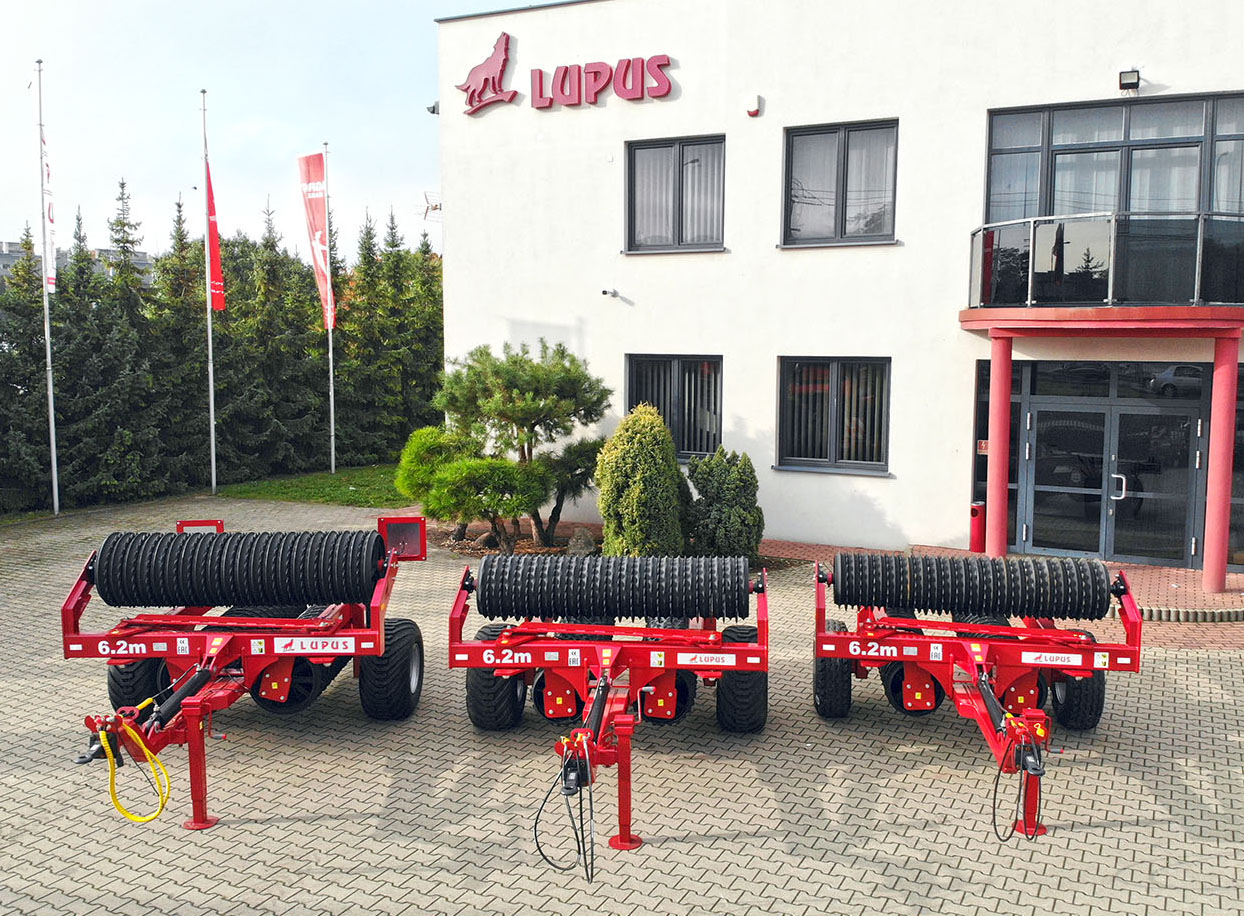

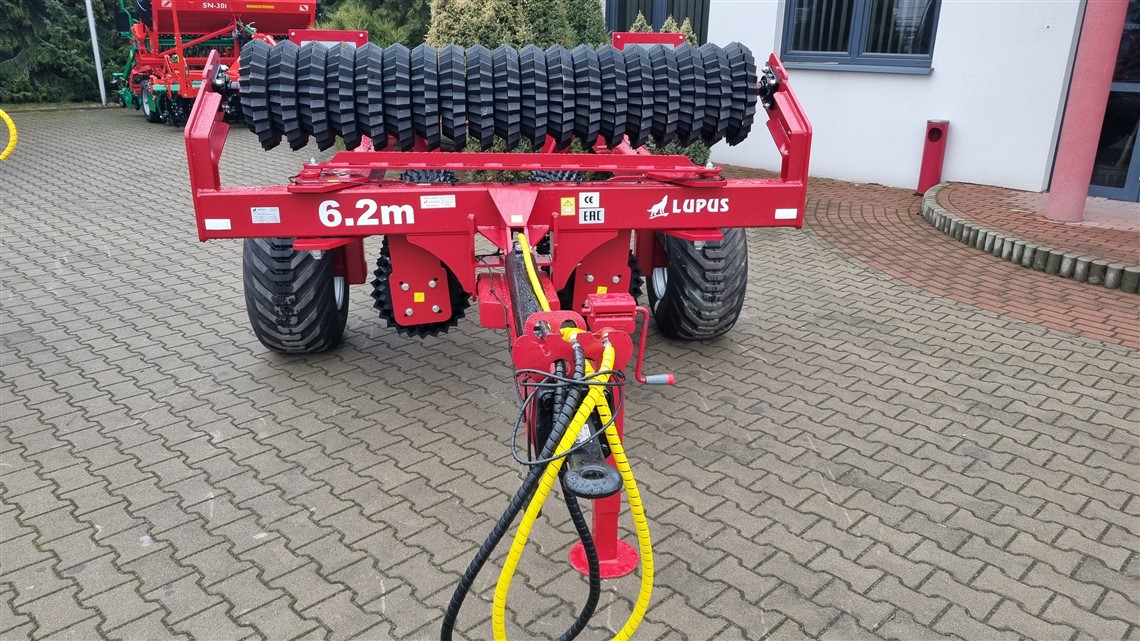

PHOTO GALLERY: 6.2m rollers
PHOTO GALLERY: 5.0 m rollers, 600 mm rings
PHOTO GALLERY: 4.5 m rollers, 500 mm rings
