Semi-mounted Double Tine Harrows LUPUS – Maximum Efficiency and Stability
LUPUS Semi-mounted Double Tine Harrows – Maximum Efficiency and Stability
Semi-mounted double tine harrows are reliable agricultural tools that combine high efficiency with optimal weight distribution. Thanks to being supported on their own wheels, they relieve the tractor’s suspension system, allowing work on wider widths and tougher soils. Discover the key advantages of semi-mounted double tine harrows!
Advantages of semi-mounted double tine harrows
Reduced load on the tractor suspension system
Semi-mounted harrows utilize their own supporting wheels, significantly reducing the pressure on the tractor’s 3-point linkage. This is particularly important when working with wide models on heavy soils, where high mass could overload the machine.
Greater working width and efficiency
Thanks to the semi-mounted design, wider working frames are possible, translating to higher efficiency on large acreages. Double rows of tines intensify soil loosening and leveling, shortening field preparation time.
Stability and uniformity of work
Supporting wheels help maintain an even working depth across the entire machine width, ensuring uniform soil loosening. This is a key factor for even plant emergence and optimal growth conditions.
Adaptation to heavy soil conditions
Thanks to massive construction and the use of spring or steel tines, semi-mounted harrows excel on difficult, compacted soils. They effectively break clods, mix crop residues, and improve soil structure.
Economic use and optimal tractor matching
Since semi-mounted harrows relieve the linkage, the key factor when selecting a tractor becomes its traction power, not lifting capacity. This allows the use of lighter tractor models, reducing fuel consumption and operating costs.

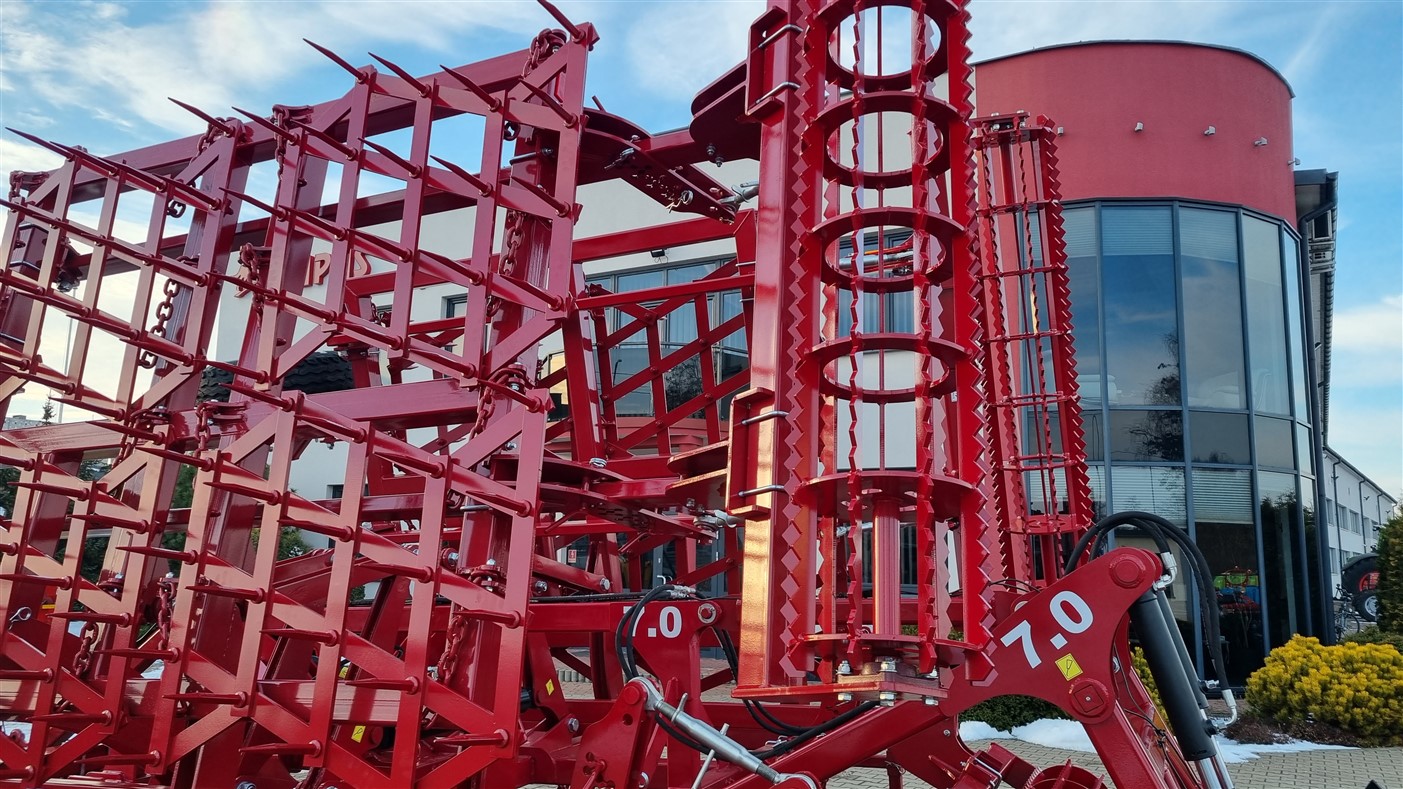

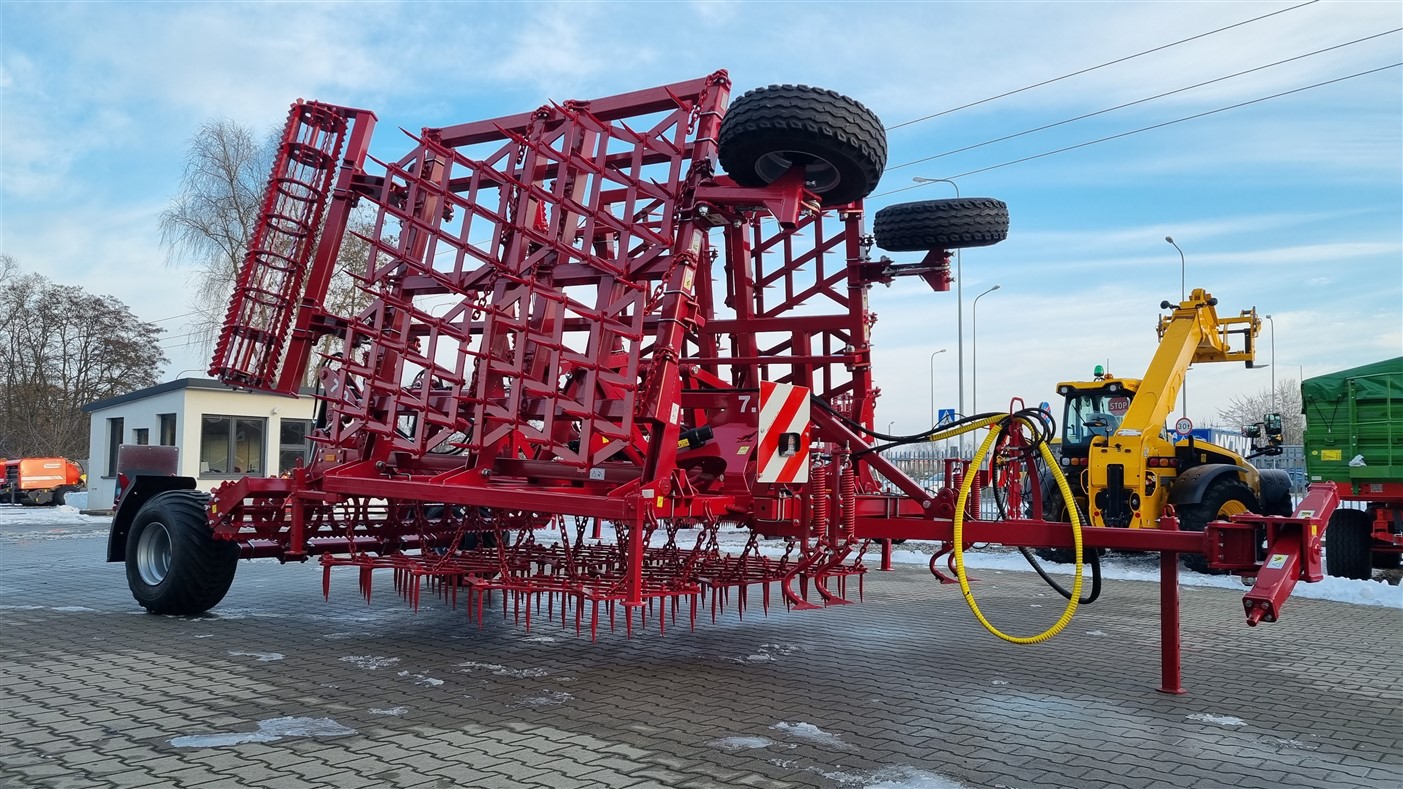

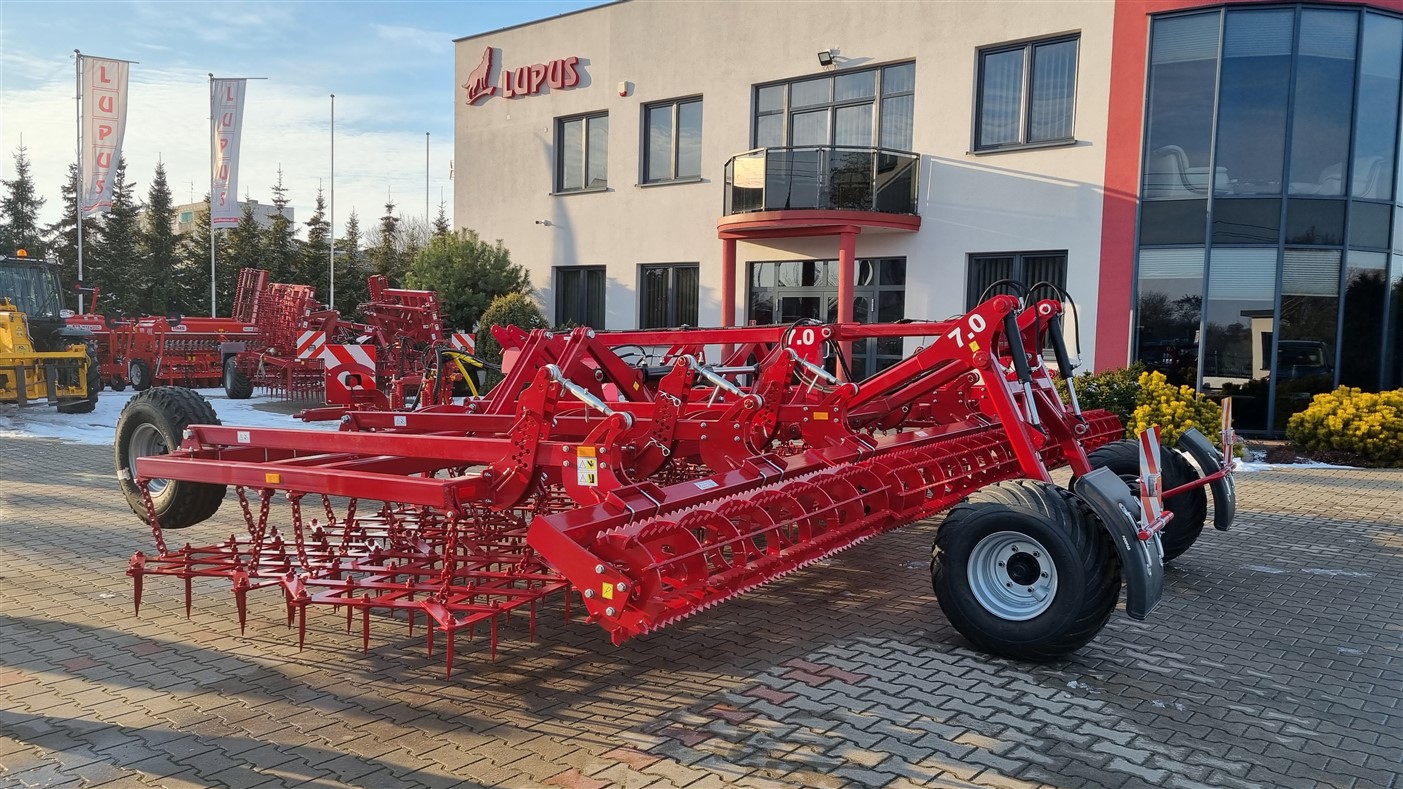

Photos: 14-section tine harrows
BUY DIRECTLY FROM THE MANUFACTURER
LUPUS – Factory & Showroom: ul. Mleczarska 6, 06-400 Ciechanów, POLAND
About us: We are a manufacturer operating in the agricultural sector since 2008. We organize international transport directly to your address. Transport costs are calculated individually based on your location.
CONTACT & ORDERS: Feel free to contact us to arrange the details: 📞 WhatsApp: +48 798 988 179 📧 E-mail: export@fhlupus.pl
Benefits – semi-mounted double tine harrows
Weed control and soil structure improvement
Double rows of tines effectively eliminate weeds and mix crop residues, ensuring better air and water access to the root system.
Soil moisture protection
Thanks to their design, tine harrows do not pull moisture from deeper layers to the surface, which is crucial in no-till systems and during droughts.
Solid construction and durability
Semi-mounted harrows are made of high-quality steel (e.g., S355), guaranteeing long service life and resistance to tough working conditions.
Technical Data
| Parameter | 10-section Harrow | 14-section Harrow | 18-section Harrow |
| Working width | 5.0 m | 7.0 m | 9.0 m |
| Number of harrow sections | 10 pcs | 14 pcs | 18 pcs |
| Weight with carriage and drawbar on string roller Ø 400 | 3700 kg | 4400 kg | 5350 kg (with supporting wheels) |
| Power requirement | From 150 HP | from 180 HP | from 200 HP |
| Supporting wheels | 350 kg | 350 kg |

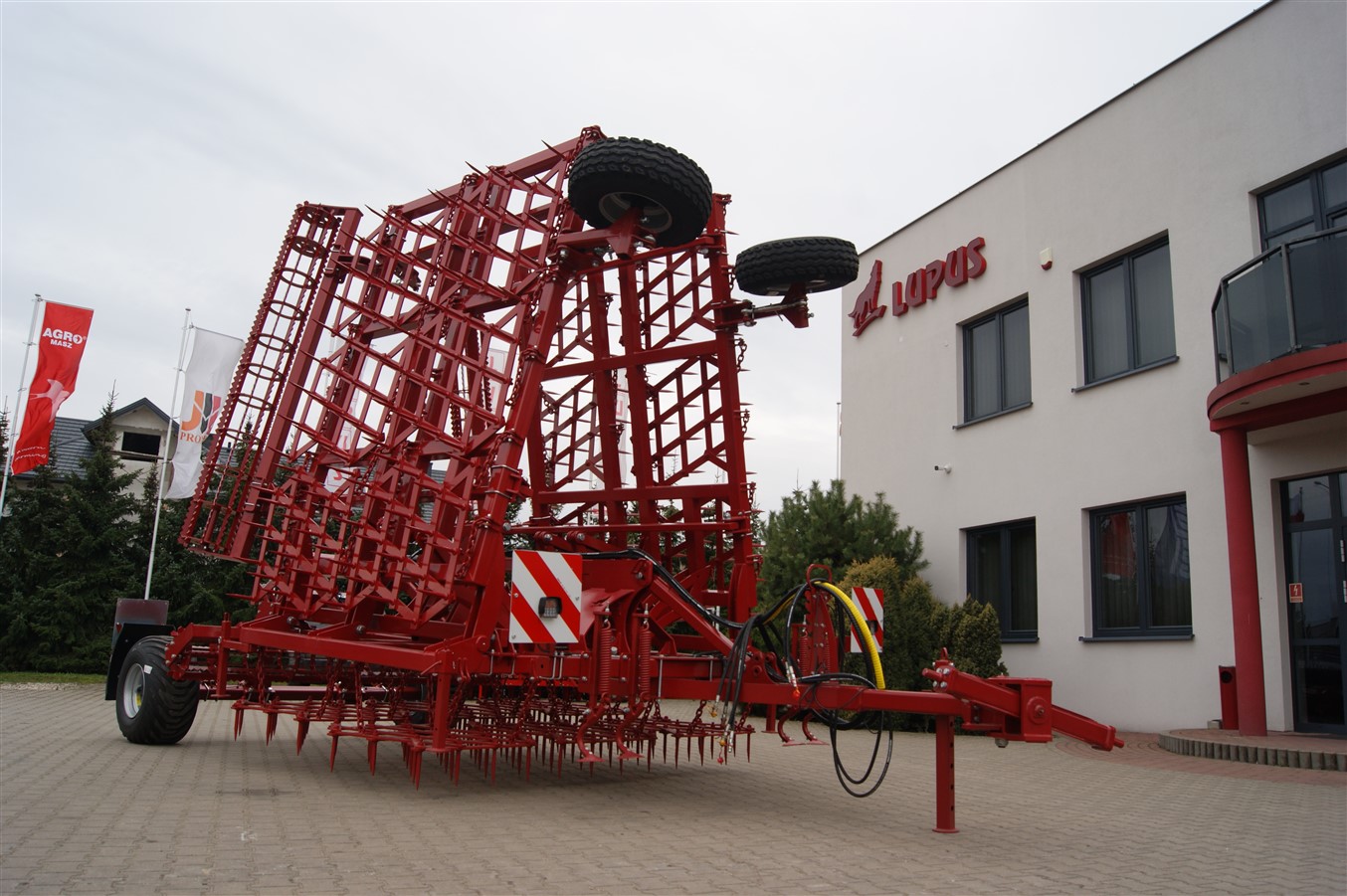

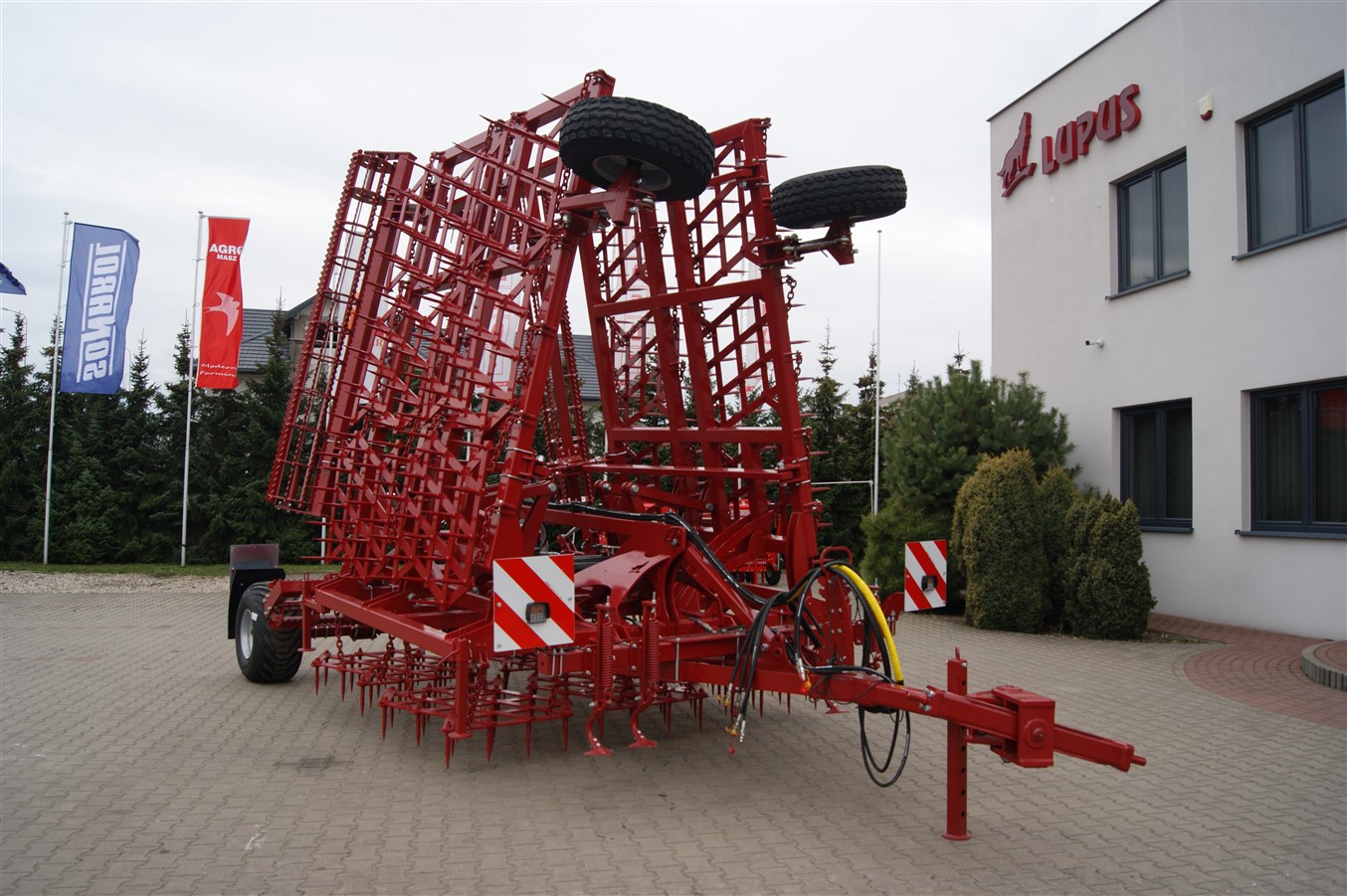

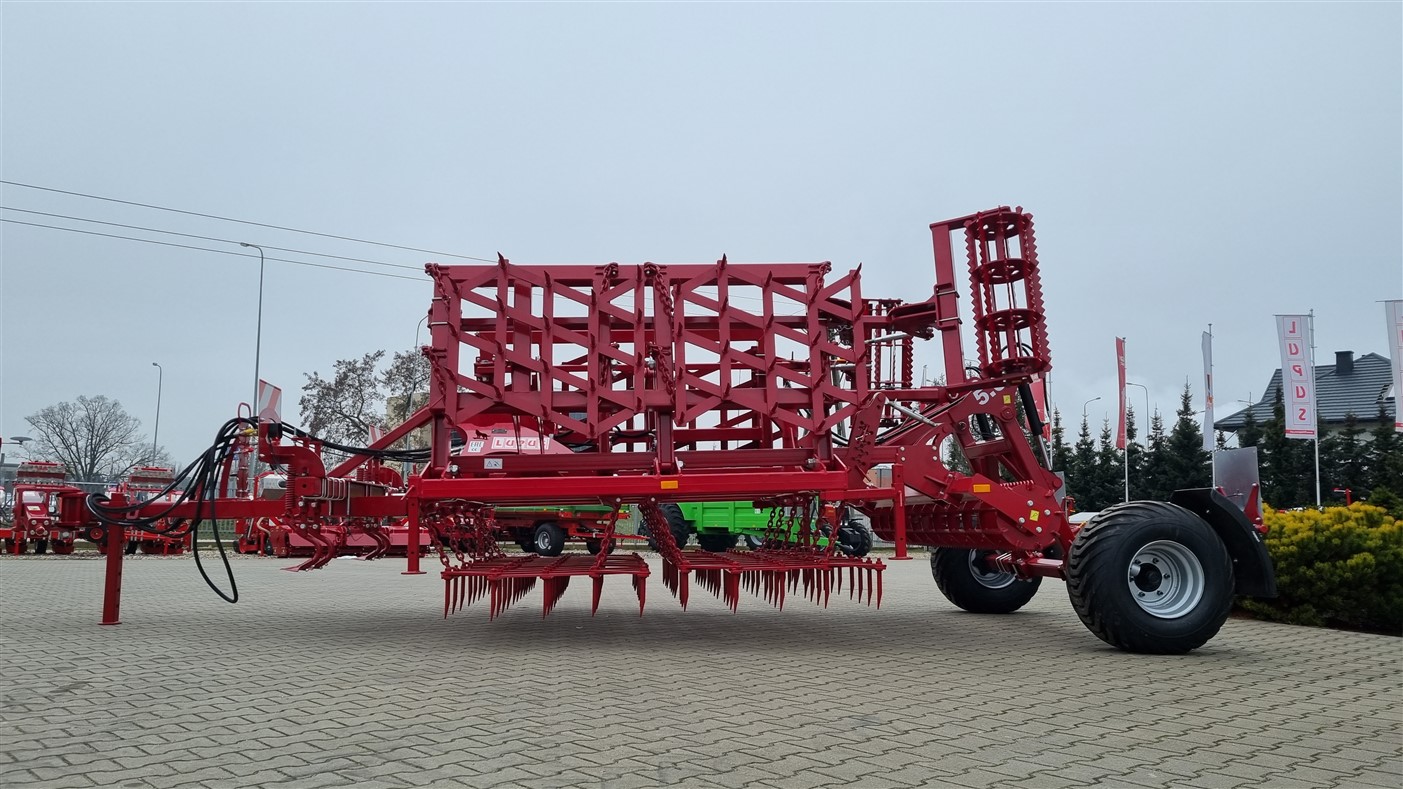

Photos: 10 and 18-section tine harrows.
