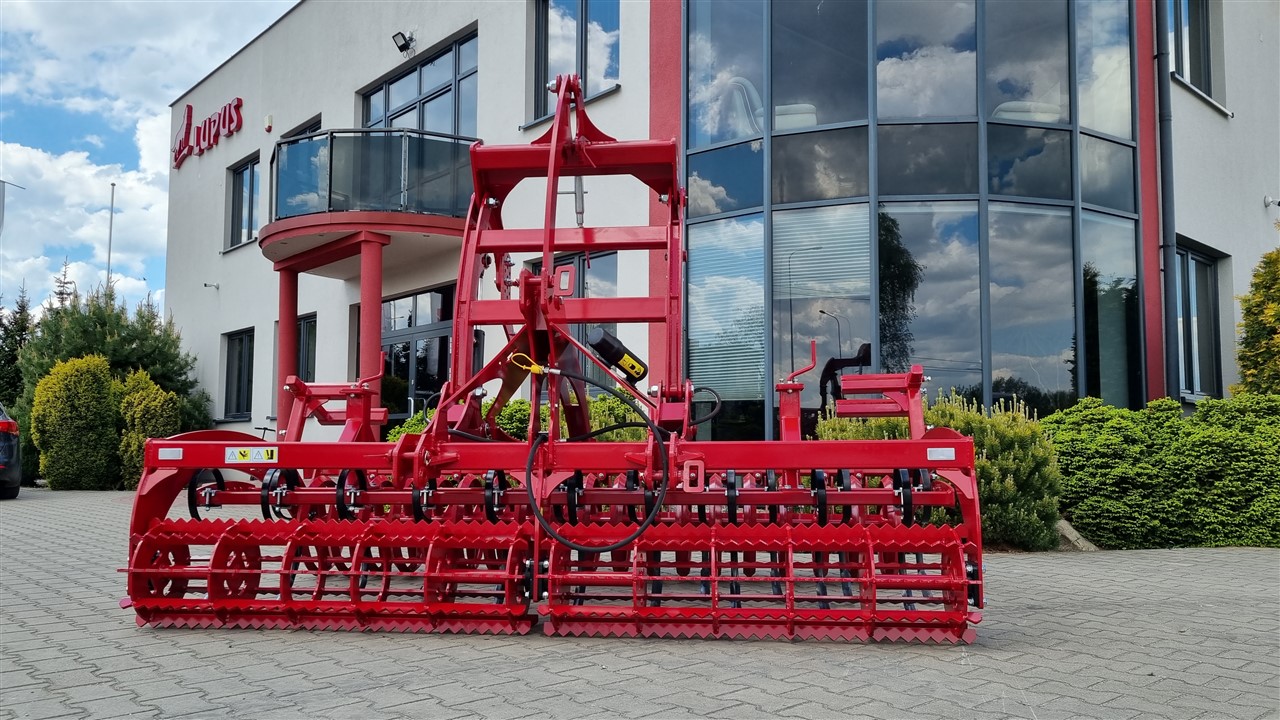

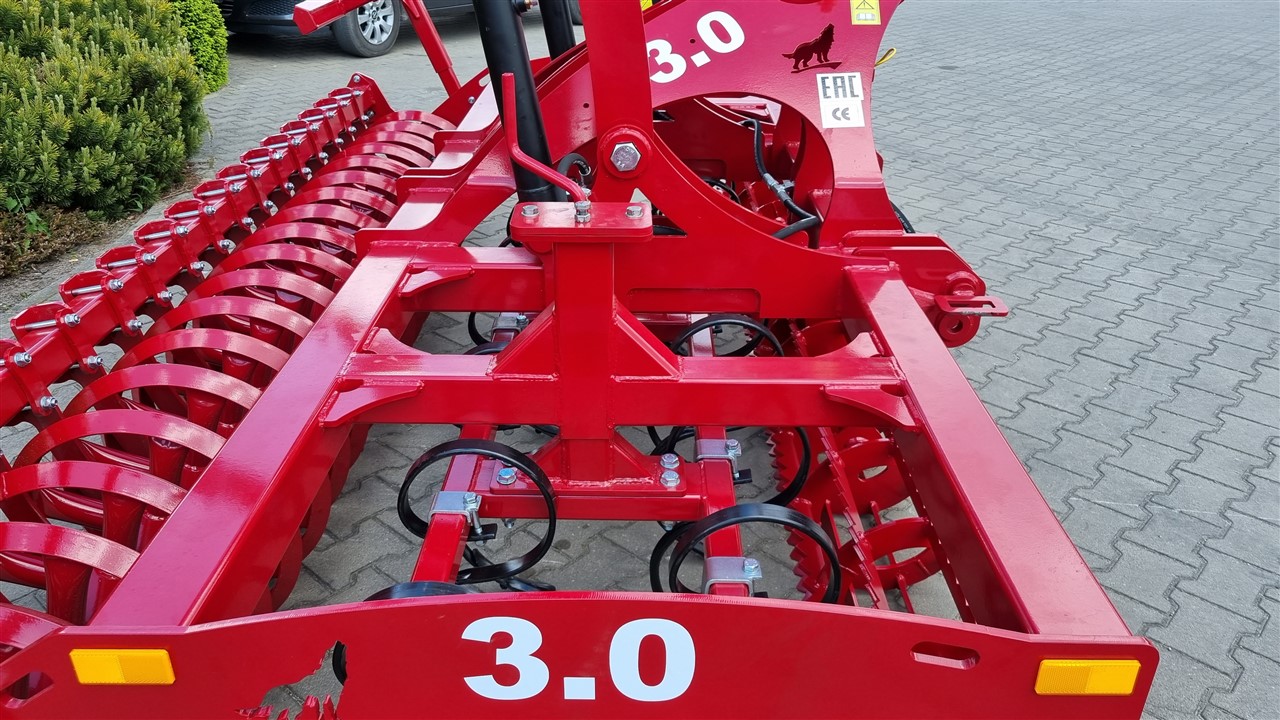

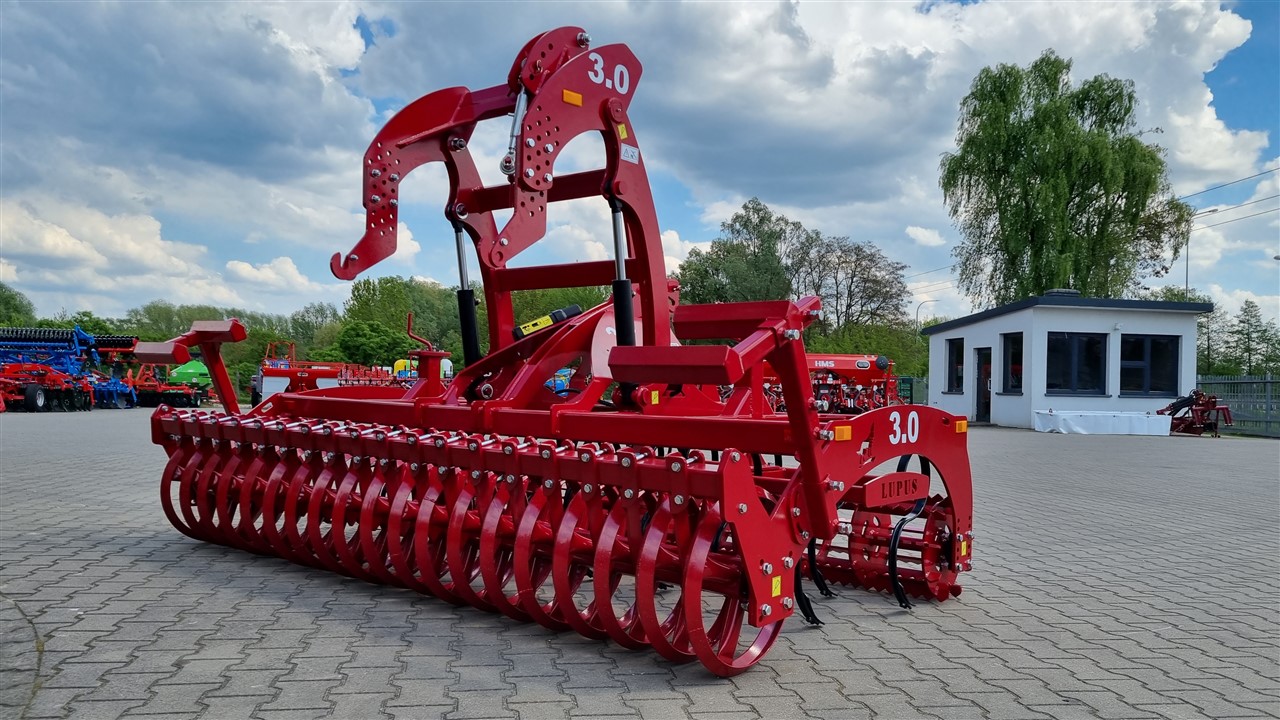

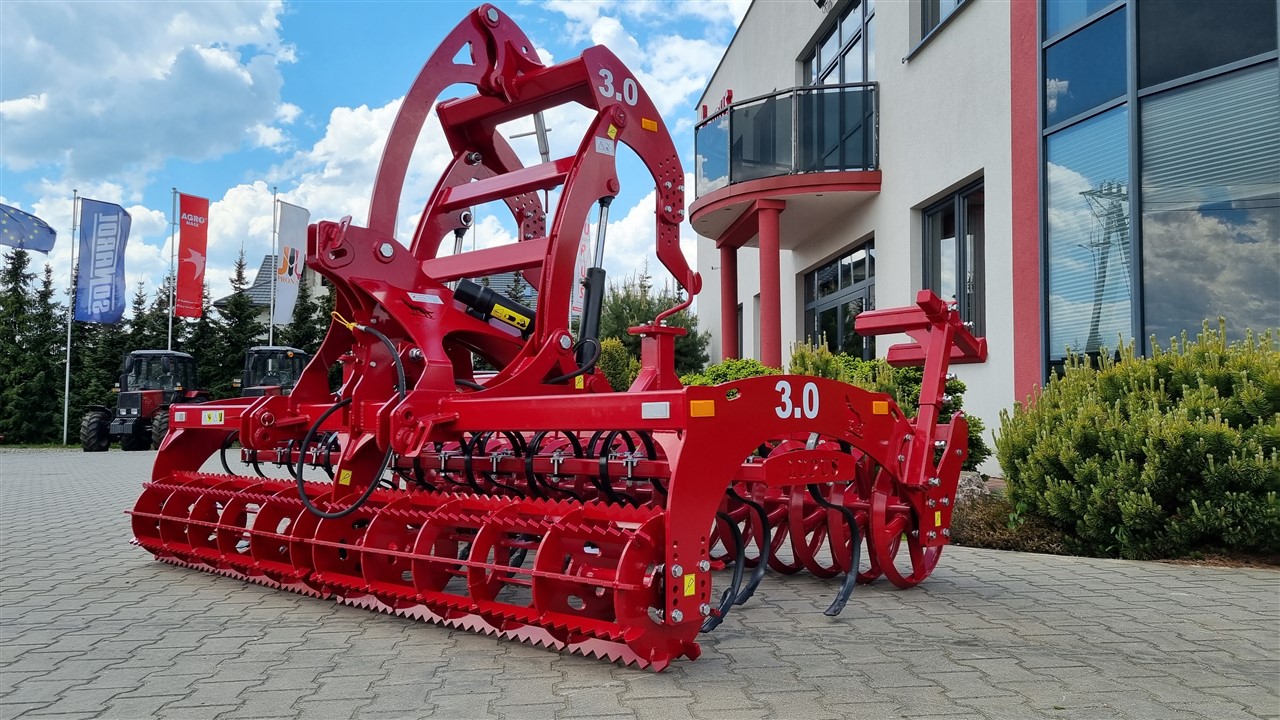

Cultivation and sowing unit LUPUS

Cultivating and sowing unit LUPUS

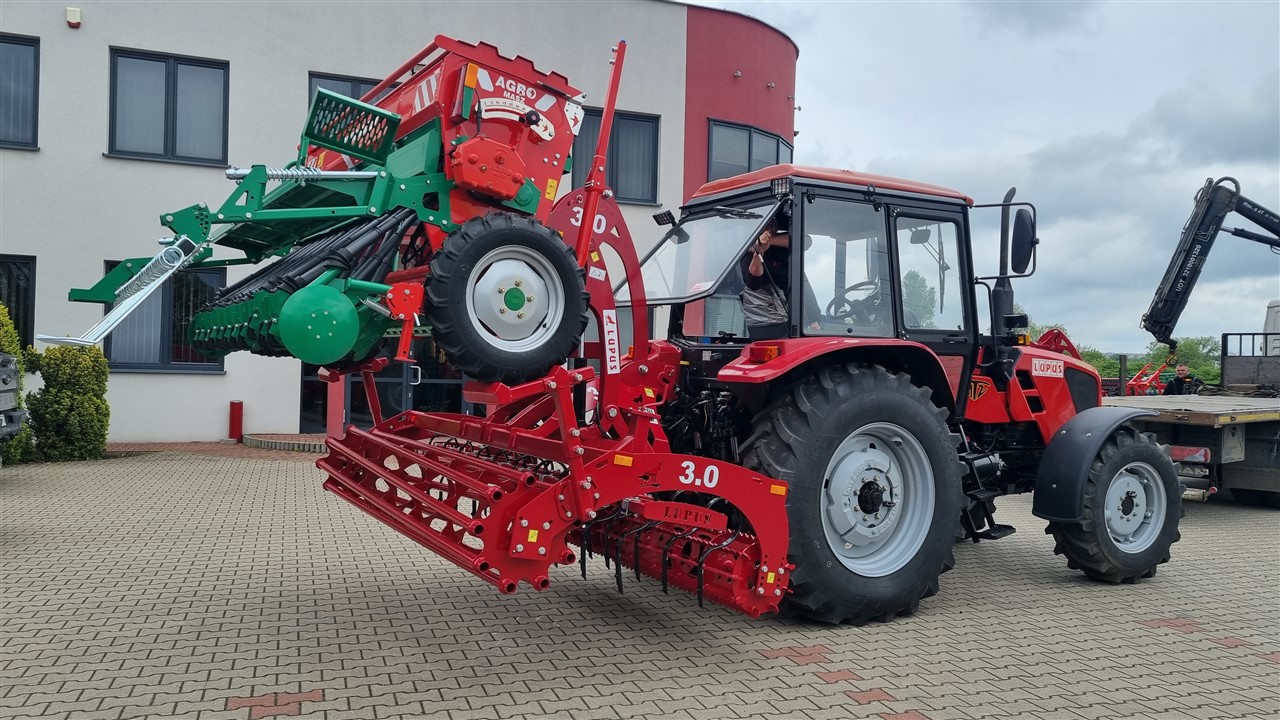

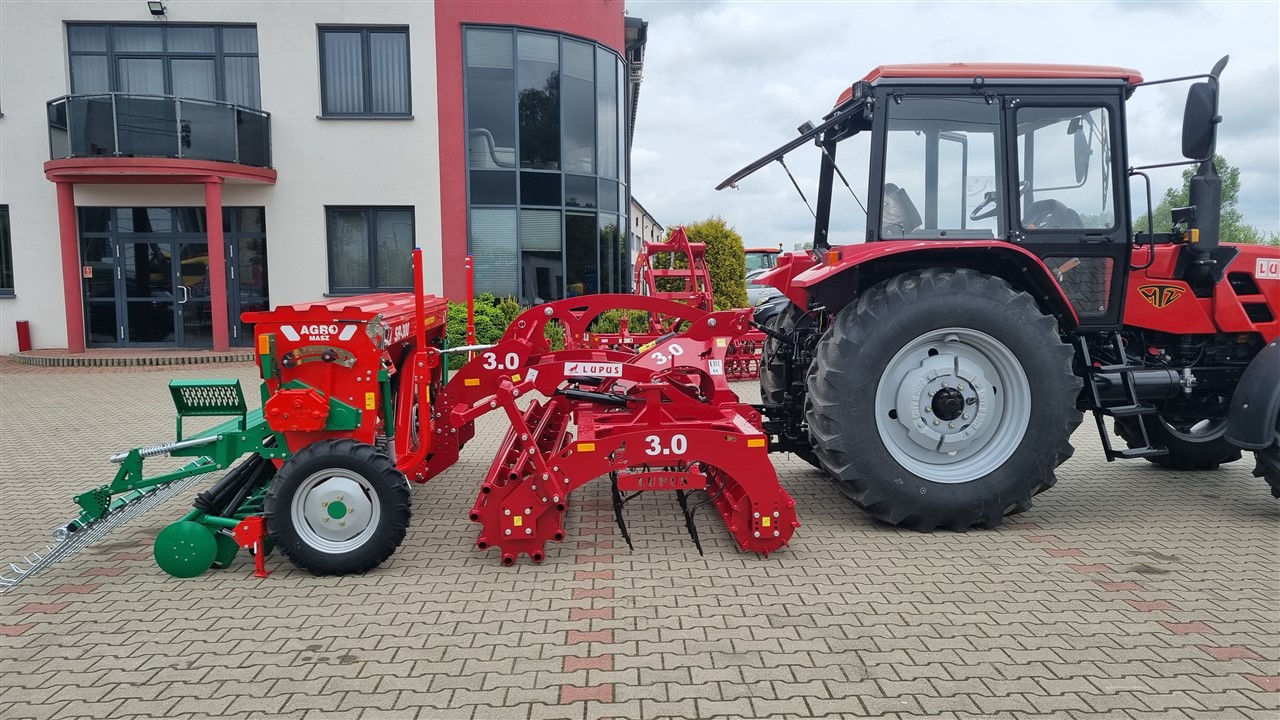

Cultivating and sowing units are intended for pre-sowing soil cultivation after ploughing or other soil pre-treatment. After being combined with a sowing machine, sowing can be done in one pass. The unit works especially well on light and medium soils for sowing cereals.

➤Specification :

– Working width [m] – 3m
– Weight [kg] – 1100 kg (on pipe roller)
– Tubular shaft Ø530mm
– Number of tines [pcs] – 20 pcs
– Power requirement [hp] – 80-100 hp
– Continuous adjustment of working depth from 0 – 120 mm
– Symbol AUS30
– Hydropack on 2 cylinders for lifting the seeder with 5t lifting capacity and 3 stable support points
– 2 rows of hardened Su 32×10 spring tines or straight jacpot 32×10 tines
– Adjustable support feet under the seed drill for 100% stability
– Reinforced construction of the whole machine
– Front split tine shaft with outer diameter fi 400
– Slipping bushings made of iglidur G are used in areas exposed to friction
– Market-leading bearing brands
– Machine shot-blasted and powder-coated
– Full range of shafts to choose from (tubular, flat, pacer, crosskill, roof)
-CE certified
– full range of rollers to choose from (tube, string, packer, crosskill, V-ring )
– symbol AUS30

➤Optional equipment:

– lighting

Please note that the stated machine weights are subject to change depending on the choice of equipment.

We are a dealer of Agro-Masz machines.

We offer you cereal seeders with feet or discs. Agro-Masz also offers light cultivating and sowing units.
