EQUIPMENT:

• • • Working width 3,0 m,
    • Two rows of discs Ø 560 mm,
    • Disc spacing 100 cm,
    • Maintenance-free hubs with cassette seal,
    • Side screens with adjustable position copying the terrain,
    • 2nd and 3rd category hitch,
    • Foldable outer discs,
    • Tubular roller Ø 530 mm,
    • Weight 1400kg

OPTIONS:

ydraulic working depth adjustment

• Hydraulic working depth adjustment
• Discs Ø 610 mm
• LED lighting
• Mounting plate for catch crop sowing
• Rear roller with a diameter of Ø 500 mm or Ø 600 mm (string roller, V-ring roller, , U- bar roller, T- bar roller, Cracker- Disc roller)

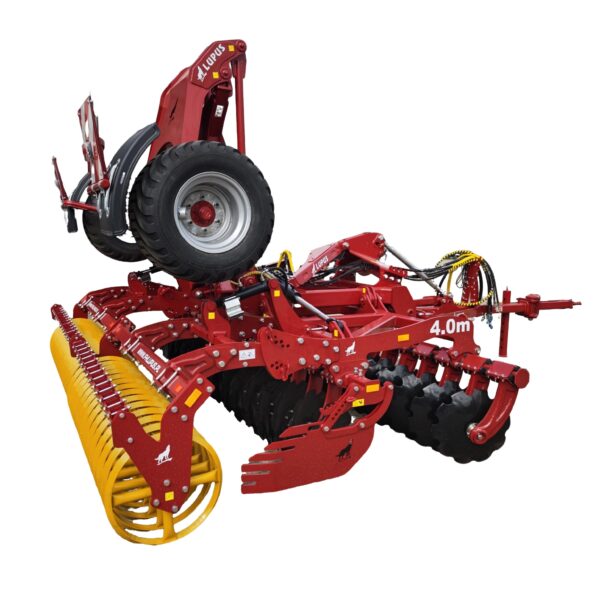

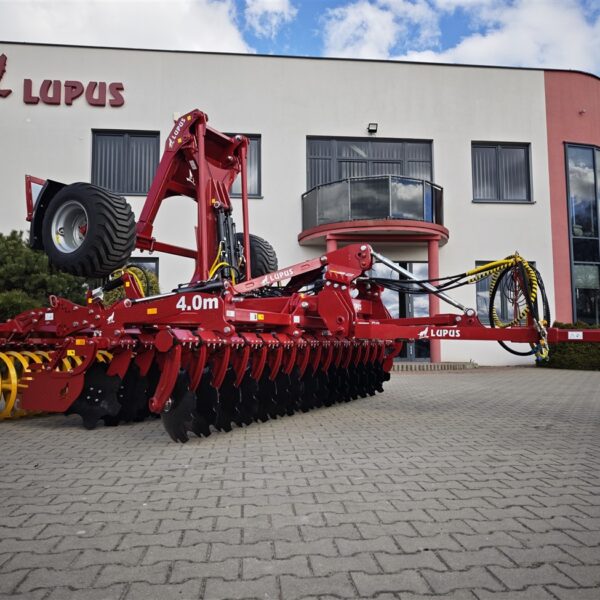

The LUPUS disc harrow is a robust design.

The frame of the machine is made of S355 hard steel with numerous approvals and quality certificates. Numerous reinforcements in the form of sheet metal reinforcing triangles have been applied to the frame. As the machine carries very heavy loads, the turret has also been designed to be bolted down and very robust, while also having a unique design. V-shaped lashings with reinforcements on the sides and a coupling plate on top. All pins and bolts have anti-twist locks.

560 mm discs with optimum spacing of 100 cm.

Large 560 mm diameter discs – The LUPUS disc harrow is equipped with 560 mm diameter discs to ensure thorough and even soil loosening. The large discs enable plant residues to be effectively mixed with the soil and for soil clods to be broken up effectively.

Optimum disc spacing of 100 cm – The disc spacing of 100 cm allows for excellent soil surface coverage, increasing work efficiency. The wide disc spacing guarantees better soil penetration and reduced soil compaction, resulting in better soil structure and higher yields.

Adjusting the working depth – LUPUS disc harrow.

The LUPUS disc harrow has a pin-locking system for locking the individual depth positions, allowing the working depth to be adjusted to soil conditions quickly and easily.

Hydraulic depth adjustment (optional) – For even greater convenience, the LUPUS disc harrow offers the option of hydraulic depth adjustment. Thanks to a system based on hydraulic cylinders, you can comfortably adjust the working depth without having to leave the tractor cab.

Maintenance-free hub with cartridge seal (standard)

The maintenance-free hub with cartridge seal ensures excellent sealing and therefore trouble-free operation. No lubrication required for comfort and time saving.

Floating side screens – copying the terrain (standard)

Floating side screens prevent ruts from forming at intersections, increasing comfort and safety. By adjusting their position, the screens adapt perfectly to the terrain, ensuring even results across the field.

Category 2 and 3 reinforced hitch (standard)

Possibility of combining the machine with tractors equipped with different categories of three-point hitch. The reinforced hitch provides a more solid attachment of the machine to the tractor, which is particularly important for heavy machinery and difficult terrain.

Folding side discs – LUPUS disc harrow (standard)

The foldable side discs are standard equipment. They guarantee use of the machine’s full working range and safe road transport. The foldable side discs are mechanically folded up for transport.
